February 2, 2017 · Window Manager Technical Notes

How X Window Managers Work, And How To Write One (Part III)

In Part II of this series, we discussed X libraries and implementation choices, and examined the basic structure of a window manager. In Part III, we will start interacting with client windows and the user through events. We will review the fundamentals of window manager implementation, using the implementation in our example non-compositing reparenting window manager, basic_wm, for reference.

Step 4: Interaction with Application Windows

Following the steps in Part II of this series, we now have a basic skeleton for our window manager. Our next step is to start talking to clients and the user via events.

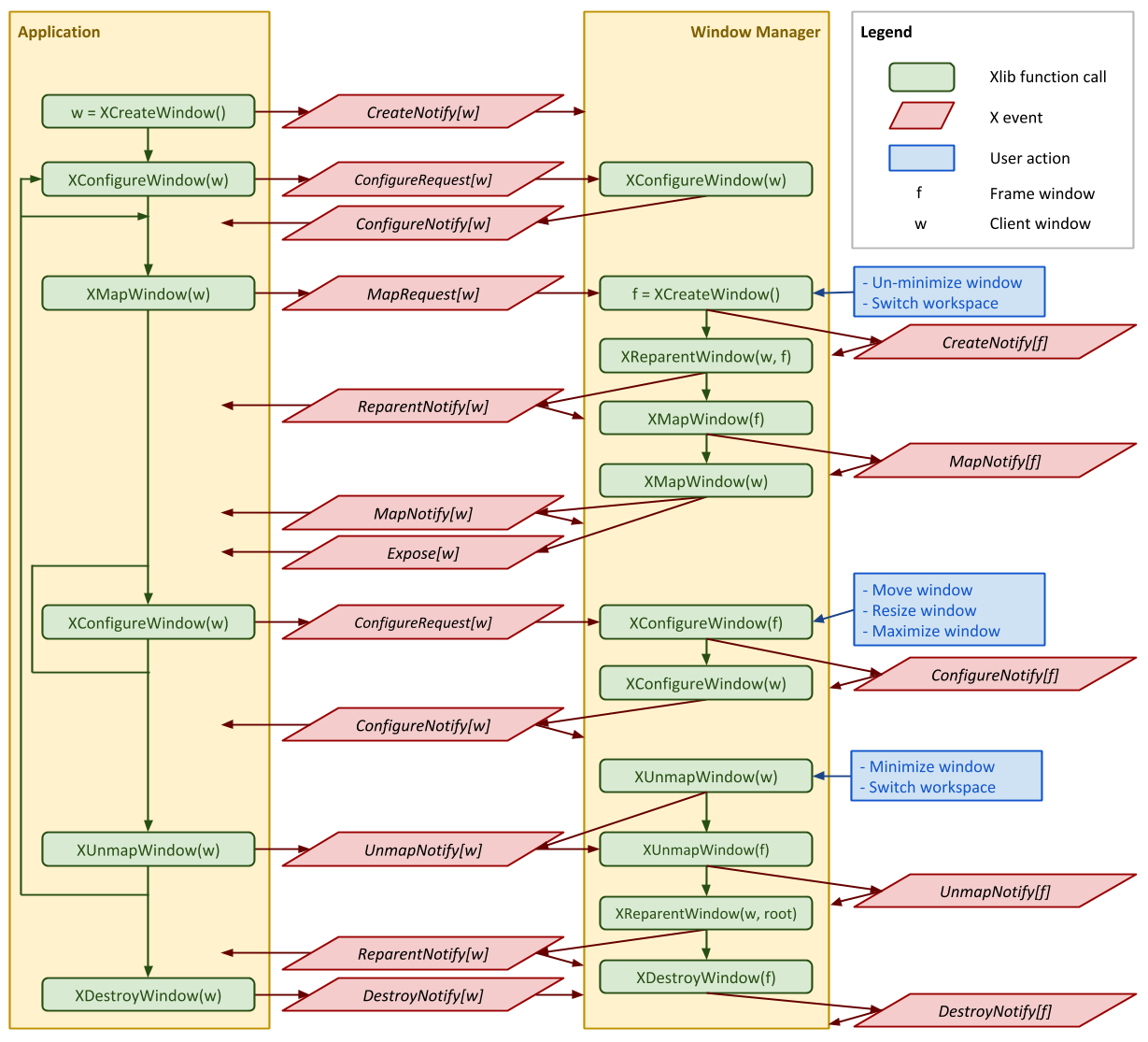

The interaction between clients, X, and the window manager is fairly complex. To facilitate our discussion, I’ve created a diagram that illustrates the flow of events throughout the lifetime of a client window, and how a window manager might respond to each of them. We’ll be referring to this cheat sheet for window manager event handling throughout this series. You can click through for the full-sized diagram.

[sB-bXhvvzFJe2u65sB-bXhvvzFJe2u65_YRwARA

In general, a window manager must handle two kinds of actions: those initiated by client applications (such as creating new windows), and those initiated by users (such as moving or minimizing windows). In this diagram, actions initiated by client applications are shown in the yellow box on the left hand side, and actions initiated by users are shown in blue on the right hand side. A window manager communicates with client applications via events, which are represented as parallelograms in red.

You may have noticed that some of the events in this diagram have the suffix Request, while others have the suffix Notify. This distinction is crucial to our discussion.

Recalling our discussion in Part I on substructure redirection, when a client application wants to do something with a window (such as moving, resizing, showing, or hiding), its request is redirected to the window manager, which can grant, modify, or deny the request. Such requests are delivered to a window manager as events with the Request suffix. It is important to understand that when a window manager receives such an event, the action it represents has not actually occurred, and it is the responsibility of the window manager to decide what to do with it. If the window manager does nothing, the request is implicitly denied.

On the other hand, events with the Notify suffix represent actions that have already been executed by the X server. The window manager can respond to such events, but of course cannot change the fact that they have already happened.

With that in mind, let’s dive into the implementation by looking at how our example window manager will handle the life cycle of a client window from creation to destruction.

Creating a Window

When an X client application creates a top-level window (XCreateWindow()), our window manager will receive a CreateNotify event. However, a newly created window is always invisible, so there’s nothing for our window manager to do. In window_manager.cpp:

void WindowManager::Run() {
  ...
  // 2. Main event loop.
  for (;;) {
    // 1. Get next event.
    ...
    // 2. Dispatch event.
    switch (e.type) {
      ...
      case CreateNotify:
        OnCreateNotify(e.xcreatewindow);
        break;
      ...
    }
  }
}

void WindowManager::OnCreateNotify(const XCreateWindowEvent& e) {}

Configuring a Newly Created Window

At this stage, the application can configure the window to set its initial size, position, or other attributes. To do so, the application would invoke XConfigureWindow(), which would send a ConfigureRequest event to the window manager. However, since the window is still invisible, the window manager doesn’t need to care and can grant such requests without modification by invoking XConfigureWindow() itself with the same parameters.

void WindowManager::Run() {
      ...
      case ConfigureRequest:
        OnConfigureRequest(e.xconfigurerequest);
        break;
      ...
}

void WindowManager::OnConfigureRequest(const XConfigureRequestEvent& e) {
  XWindowChanges changes;
  // Copy fields from e to changes.
  changes.x = e.x;
  changes.y = e.y;
  changes.width = e.width;
  changes.height = e.height;
  changes.border_width = e.border_width;
  changes.sibling = e.above;
  changes.stack_mode = e.detail;
  // Grant request by calling XConfigureWindow().
  XConfigureWindow(display_, e.window, e.value_mask, &changes);
  LOG(INFO) << "Resize " << e.window << " to " << Size<int>(e.width, e.height);
}

Mapping a Window

To make the window finally visible on screen, the client application will call XMapWindow() to map it. This sends a MapRequest event to the window manager. As noted earlier, at this point, the window is still not yet visible, as it’s up to the window manager to actually make it so. This is probably the most important event in our discussion, as this is where a window manager would usually start really managing a window.

A reparenting window manager would typically respond to a MapRequest for a client application window w with the following actions:

  1. Create a frame window f, perhaps with borders and window decoration (e.g. title, minimize / maximize / close buttons).

  2. Register for substructure redirect on f with XSelectInput(). Recall that substructure redirect only applies to direct child windows, so after reparenting, the substructure redirect previously registered on the root window would no longer apply to w, hence this step.

  3. Make w a child of f with XReparentWindow().

  4. Render f and w with XMapWindow().

  5. Register for mouse or keyboard shortcuts on w and/or f.

The example implementation in basic_wm will create a very simple frame window that has the same size as the client window, but with a 3px red border:

void WindowManager::Run() {
      ...
      case MapRequest:
        OnMapRequest(e.xmaprequest);
        break;
      ...
}

void WindowManager::OnMapRequest(const XMapRequestEvent& e) {
  // 1. Frame or re-frame window.
  Frame(e.window);
  // 2. Actually map window.
  XMapWindow(display_, e.window);
}

void WindowManager::Frame(Window w) {
  // Visual properties of the frame to create.
  const unsigned int BORDER_WIDTH = 3;
  const unsigned long BORDER_COLOR = 0xff0000;
  const unsigned long BG_COLOR = 0x0000ff;

  // 1. Retrieve attributes of window to frame.
  XWindowAttributes x_window_attrs;
  CHECK(XGetWindowAttributes(display_, w, &x_window_attrs));

  // 2. TODO - see Framing Existing Top-Level Windows section below.

  // 3. Create frame.
  const Window frame = XCreateSimpleWindow(
      display_,
      root_,
      x_window_attrs.x,
      x_window_attrs.y,
      x_window_attrs.width,
      x_window_attrs.height,
      BORDER_WIDTH,
      BORDER_COLOR,
      BG_COLOR);
  // 3. Select events on frame.
  XSelectInput(
      display_,
      frame,
      SubstructureRedirectMask | SubstructureNotifyMask);
  // 4. Add client to save set, so that it will be restored and kept alive if we
  // crash.
  XAddToSaveSet(display_, w);
  // 5. Reparent client window.
  XReparentWindow(
      display_,
      w,
      frame,
      0, 0);  // Offset of client window within frame.
  // 6. Map frame.
  XMapWindow(display_, frame);
  // 7. Save frame handle.
  clients_[w] = frame;
  // 8. Grab events for window management actions on client window.
  //   a. Move windows with alt + left button.
  XGrabButton(...);
  //   b. Resize windows with alt + right button.
  XGrabButton(...);
  //   c. Kill windows with alt + f4.
  XGrabKey(...);
  //   d. Switch windows with alt + tab.
  XGrabKey(...);

  LOG(INFO) << "Framed window " << w << " [" << frame << "]";
}

The outline of the code should be fairly clear following our discussion. A few additional points to note:

Configuring a Mapped Window

A client application can configure a window that is currently visible, again with the XConfigureWindow() function. For example, an application may want to resize a window to better accomodate its contents. When a reparenting window manager receives the resulting ConfigureRequest and decides to grant the request, it additionally needs to resize / reposition the corresponding frame window and any window decorations.

void WindowManager::OnConfigureRequest(const XConfigureRequestEvent& e) {
  XWindowChanges changes;
  // Copy fields from e to changes.
  ...
  if (clients_.count(e.window)) {
    const Window frame = clients_[e.window];
    XConfigureWindow(display_, frame, e.value_mask, &changes);
    LOG(INFO) << "Resize [" << frame << "] to " << Size<int>(e.width, e.height);
  }
  // Grant request by calling XConfigureWindow().
  ...
}

When our window manager re-configures the frame window with the XConfigureWindow() call above, the X server knows that the action originates from the current window manager, and will execute it directly instead of redirecting it back as a ConfigureRequest event. Our window manager will then receive a ConfigureNotify event, which it will ignore:

void WindowManager::Run() {
      ...
      case ConfigureNotify:
        OnConfigureNotify(e.xconfigure);
        break;
      ...
}

void WindowManager::OnConfigureNotify(const XConfigureEvent& e) {}

Unmapping a Window

When a client application unmaps (i.e. hides) a window with XUnmapWindow(), for example in response to the user exiting or minimizing the application, the window manager will receive a UnmapNotify event. Unlike the MapRequest event, the UnmapNotify event is delivered to the window manager after the fact, and the window manager can only respond to it, not intercept it.

A reparenting window manager will typically want to reverse the actions it performed in response to MapRequest. In other words, it would reparent the client window back to the root window, and destroy the corresponding frame window.

void WindowManager::Run() {
      ...
      case UnmapNotify:
        OnUnmapNotify(e.xunmap);
        break;
      ...
}

void WindowManager::OnUnmapNotify(const XUnmapEvent& e) {
  // If the window is a client window we manage, unframe it upon UnmapNotify. We
  // need the check because we will receive an UnmapNotify event for a frame
  // window we just destroyed ourselves.
  if (!clients_.count(e.window)) {
    LOG(INFO) << "Ignore UnmapNotify for non-client window " << e.window;
    return;
  }

  Unframe(e.window);
}

void WindowManager::Unframe(Window w) {
  // We reverse the steps taken in Frame().
  const Window frame = clients_[w];
  // 1. Unmap frame.
  XUnmapWindow(display_, frame);
  // 2. Reparent client window back to root window.
  XReparentWindow(
      display_,
      w,
      root_,
      0, 0);  // Offset of client window within root.
  // 3. Remove client window from save set, as it is now unrelated to us.
  XRemoveFromSaveSet(display_, w);
  // 4. Destroy frame.
  XDestroyWindow(display_, frame);
  // 5. Drop reference to frame handle.
  clients_.erase(w);

  LOG(INFO) << "Unframed window " << w << " [" << frame << "]";
}

A few additional points to note:

At this point, the client window has become invisible, but not yet destroyed. It can be displayed again with a call to XMapWindow(), which would take us back to the Mapping a Window step. It could also be reconfigured in this state, which would take us back to the Configuring a Newly Created Window step.

Destroying a Window

When a client application exits or no longer needs a window, it will call XDestroyWindow() to dispose of the window. This triggers a DestroyNotify event. In our case, there’s nothing we need to do in response.

void WindowManager::Run() {
      ...
      case DestroyNotify:
        OnDestroyNotify(e.xdestroywindow);
        break;
      ...
}

void WindowManager::OnDestroyNotify(const XDestroyWindowEvent& e) {}

Framing Existing Top-Level Windows

Now that we’ve walked through the life cycle of a client window, from creation to destruction, let’s turn our attention to the problem of existing top-level windows.

You may recall from Part I that X applications in general run just fine without a window manager. Depending on how an X session is started (e.g. xinitrc), by the time a window manager starts, any number of windows may have already been created by other applications. Additionally, the user can kill a running window manager and replace it with a different window manager, without affecting windows from other applications.

Therefore, when our window manager starts up, it needs to handle any existing top-level windows that are already mapped. As a reparenting window manager, it will invoke the same Frame() function on such windows as if these windows are being mapped for the first time:

void WindowManager::Run() {
  // 1. Initialization.
  //   a. Select events on root window. Use a special error handler so we can
  //   exit gracefully if another window manager is already running.
  ...
  //   b. Set error handler.
  ...
  //   c. Grab X server to prevent windows from changing under us while we
  //   frame them.
  XGrabServer(display_);
  //   d. Frame existing top-level windows.
  //     i. Query existing top-level windows.
  Window returned_root, returned_parent;
  Window* top_level_windows;
  unsigned int num_top_level_windows;
  CHECK(XQueryTree(
      display_,
      root_,
      &returned_root,
      &returned_parent,
      &top_level_windows,
      &num_top_level_windows));
  CHECK_EQ(returned_root, root_);
  //     ii. Frame each top-level window.
  for (unsigned int i = 0; i < num_top_level_windows; ++i) {
    Frame(top_level_windows[i], true /* was_created_before_window_manager */);
  }
  //     iii. Free top-level window array.
  XFree(top_level_windows);
  //   e. Ungrab X server.
  XUngrabServer(display_);

  // 2. Main event loop.
  ...
}

void WindowManager::OnMapRequest(const XMapRequestEvent& e) {
  // 1. Frame or re-frame window.
  Frame(e.window, false /* was_created_before_window_manager */);
  ...
}

void WindowManager::Frame(Window w, bool was_created_before_window_manager) {
  ...
  // 1. Retrieve attributes of window to frame.
  ...
  // 2. If window was created before window manager started, we should frame
  // it only if it is visible and doesn't set override_redirect.
  if (was_created_before_window_manager) {
    if (x_window_attrs.override_redirect ||
        x_window_attrs.map_state != IsViewable) {
      return;
    }
  }
  // 3. Create frame.
  ...
}

void WindowManager::OnUnmapNotify(const XUnmapEvent& e) {
  ...

  // Ignore event if it is triggered by reparenting a window that was mapped
  // before the window manager started.
  //
  // Since we receive UnmapNotify events from the SubstructureNotify mask, the
  // event attribute specifies the parent window of the window that was
  // unmapped. This means that an UnmapNotify event from a normal client window
  // should have this attribute set to a frame window we maintain. Only an
  // UnmapNotify event triggered by reparenting a pre-existing window will have
  // this attribute set to the root window.
  if (e.event == root_) {
    LOG(INFO) << "Ignore UnmapNotify for reparented pre-existing window "
              << e.window;
    return;
  }

  Unframe(e.window);
}

Some additional things to note:

What’s Next

At this point, we have a basic but functional reparenting window manager that will correctly handle the life cycle of windows. If you strip out window decorations, shortcuts and fancy UI, the core structure of every X window manager will quite closely resemble what we have here.

In our next installment, we will improve the user-facing functionality of our window manager by adding ways to move, resize and close windows. In the meantime, you’re more than welcome to check out the code for basic_wm on GitHub.
